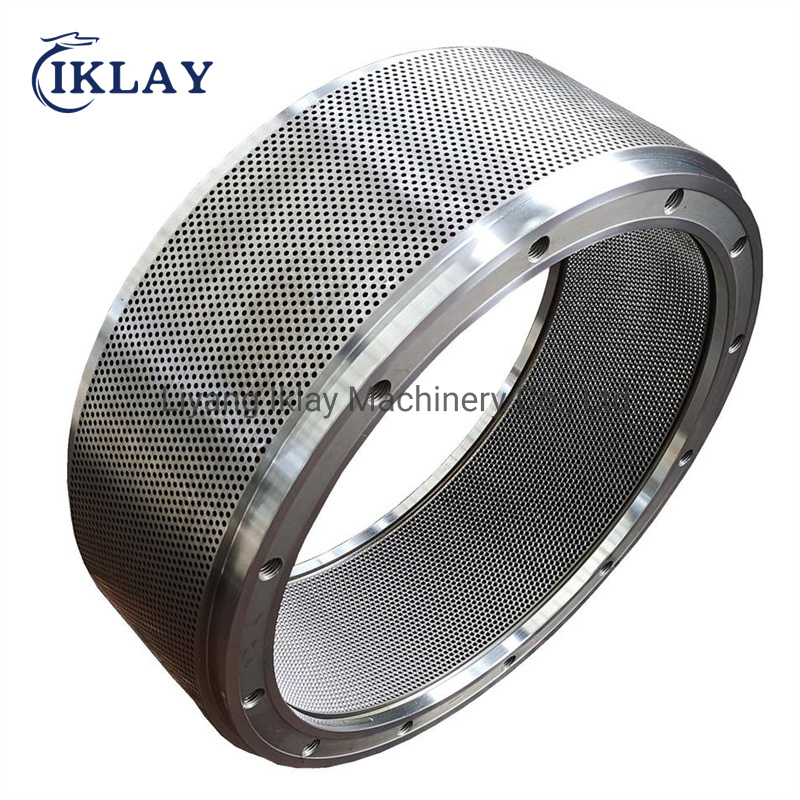

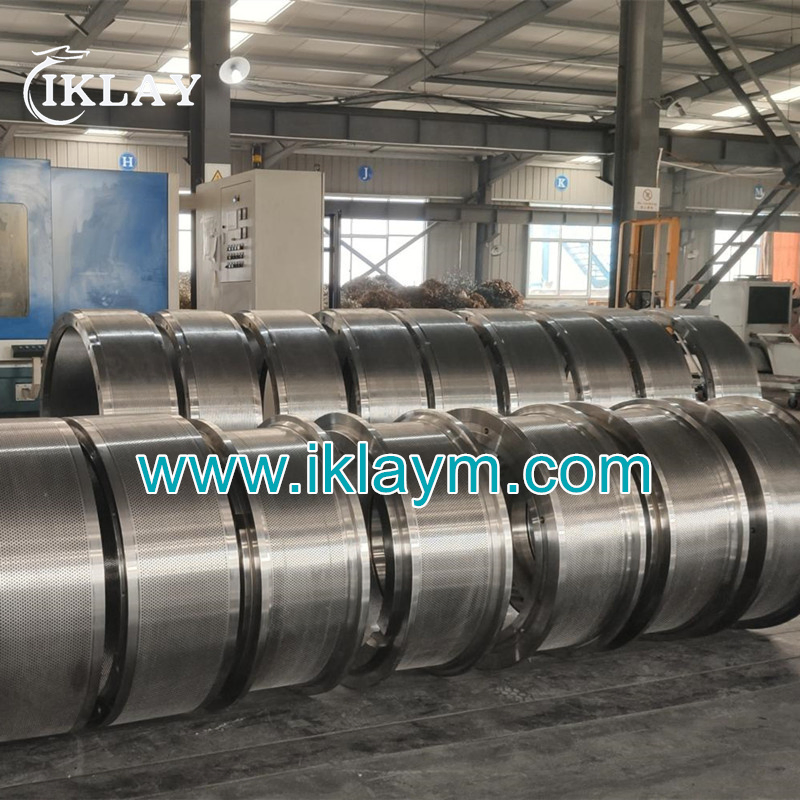

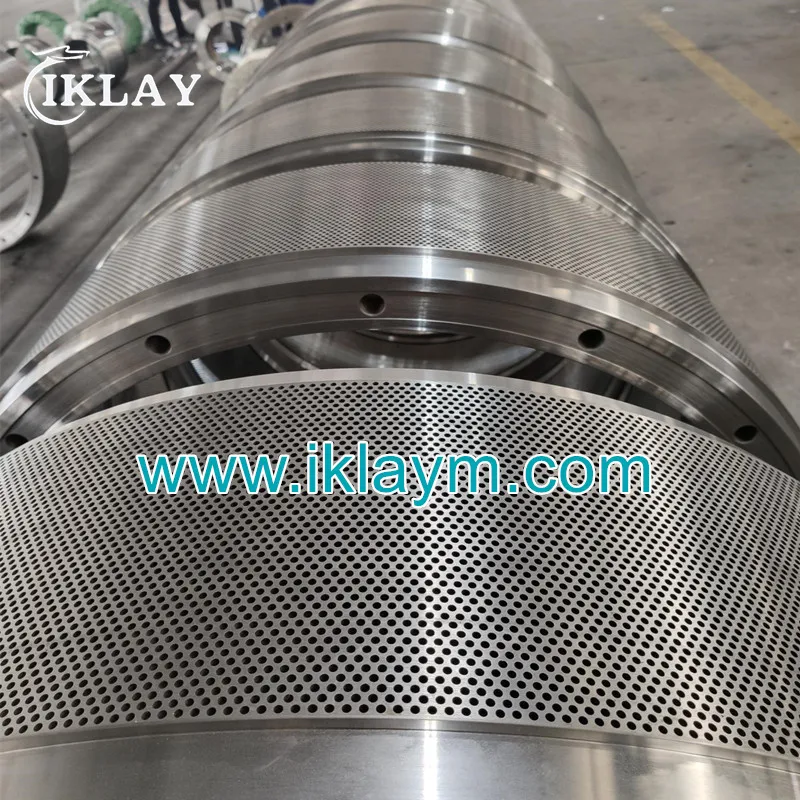

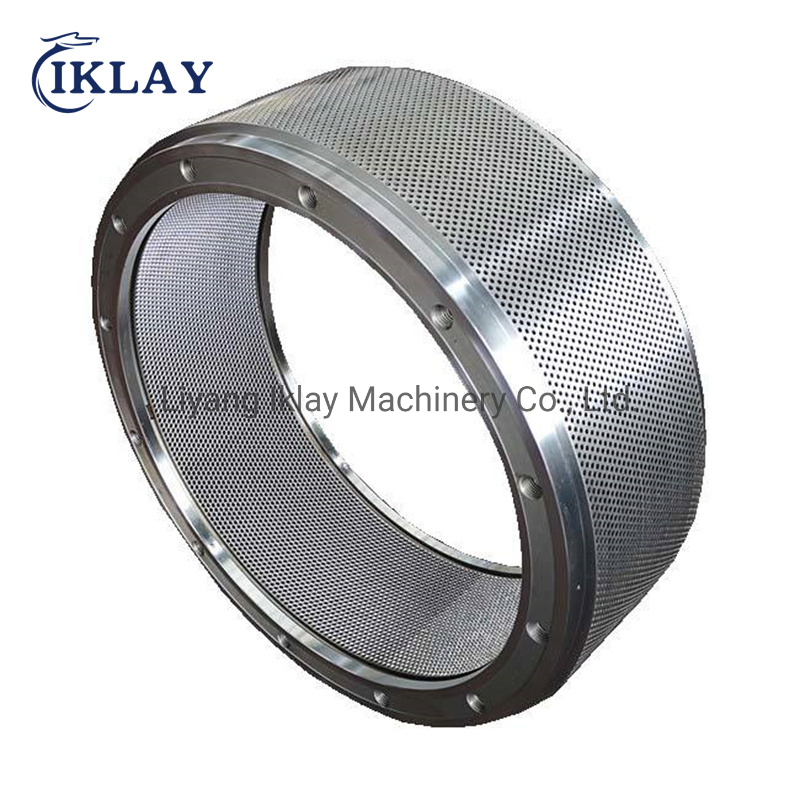

Stainless Steel Buhler 660.228 (DPAS) & 660.265 (DPHD) Ring Die Matrix

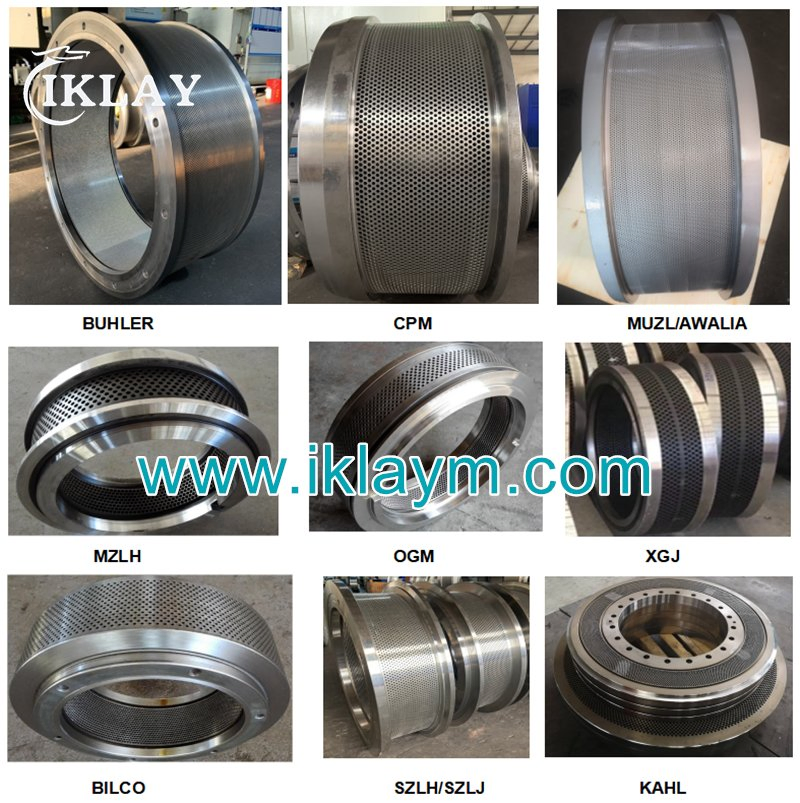

Professional manufacturer for ring dies, flat dies, pellet mill matrixes, rollers, and spare parts. We customize various models of pellet dies and rollers for machines including MZLH, SZLH, SZLJ, HKJ, CPM, OGM, IDAH, Amandus Kahl, MUZL/FAMSUN, Buhler, Van Arson, PTN, Andritz PM, Yemmak, and more.
| Pellet Mill Brand | Model Range |
|---|---|
| CPM | 3016-4, 3016-5, 3020-6, 3022SW, 7722-6, 7726SW, 7730-8, 7930-4, 7932-12, 9036-9, 9046-14, etc. |
| Buhler | 304.58, 420.108 (DMFJ), 520.178 (DPBS), 660.138 (DPAB), 660.228 (DPAS), 660.265 (DPHD), 900.300 (DPHE), SZLH400, AHHB530, AHPE900... |
| Amandus Kahl | 14-175, 24-390, 33-500, 38-600, 35-780, 39-1000, 45-1250, 60-1500 |
| Zhengchang | SZLH250, SZLH320, SZLH420, SZLH508, SZLH1068, SZLH1208, SZLH660X... |
| Famsun (Muyang) | MUZL350, MUZL420, MUZL610, MUZL1210, MUZL1610, K15, K25, K40, K70, MUZL1200A... |
| Material Type | Hardness | Hole Diameter | Outer Diameter |
|---|---|---|---|
| X46Cr13/4Cr13 (Stainless Steel); 20MnCr5/20CrMnTi (Alloy Steel) | HRC54-60 | 1.0mm - 28mm | Up to 1800mm |

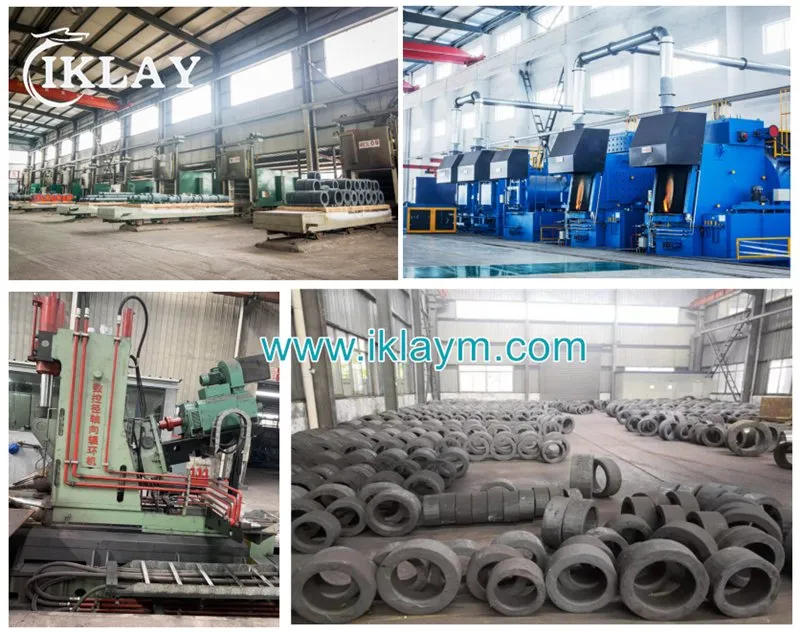

Using top-tier forging raw materials to enhance usage life by approximately 15%. High purity with minimal impurities.

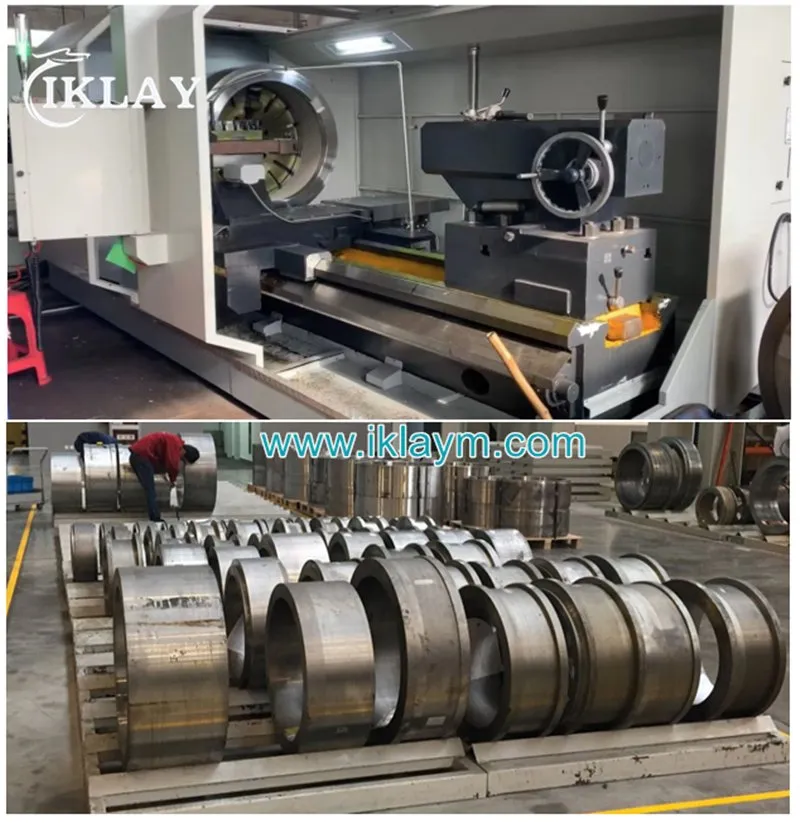

Automatic CNC lathing machines are utilized for high-precision finishing of both ring dies and flat dies.

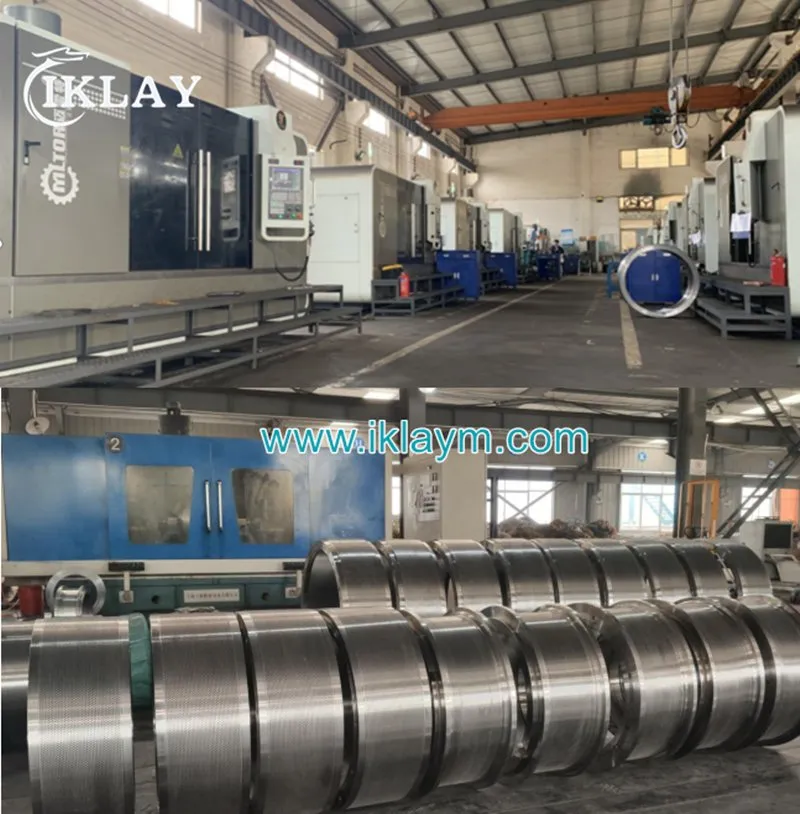

Automatic CNC gun drilling ensures inner holes achieve mirror-like polishment, smoothness, and optimal forming performance.

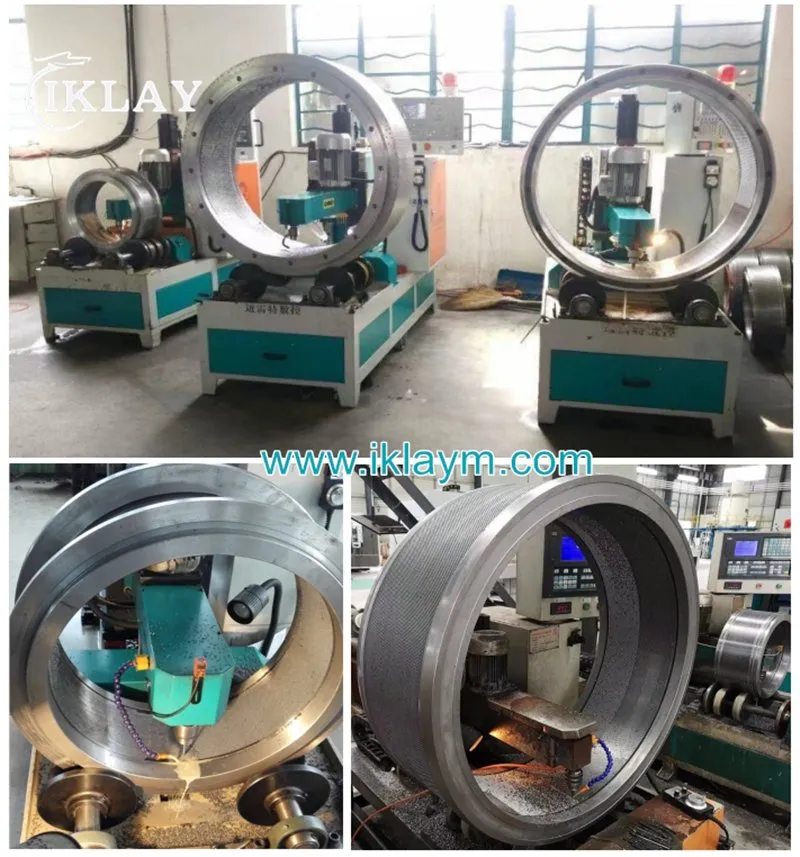

Ensuring smooth and uniform entry points with automatic CNC countersinking technology.

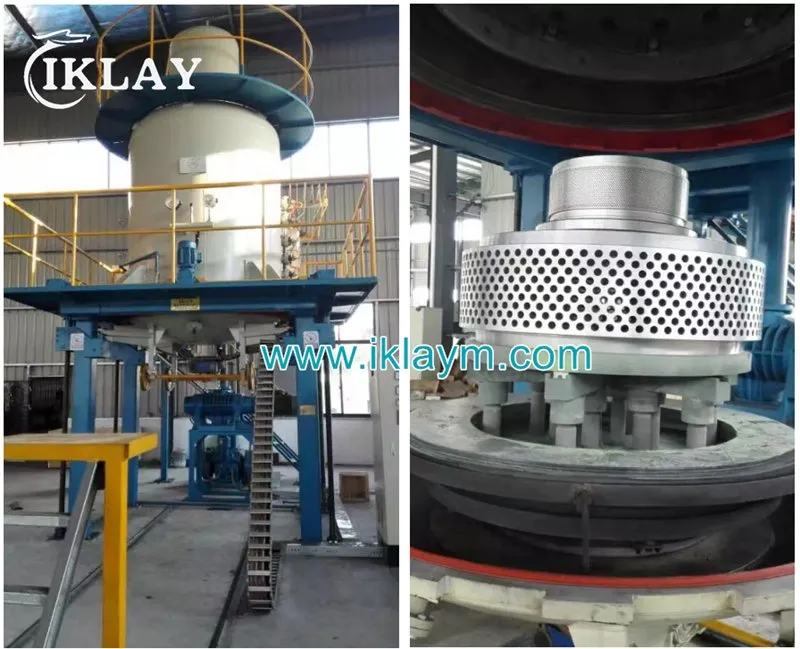

Vacuum furnace processing ensures a long service life. Stainless steel reaches HRC 54-58, while Alloy steel reaches HRC 57-60 for maximum wear and corrosion resistance.

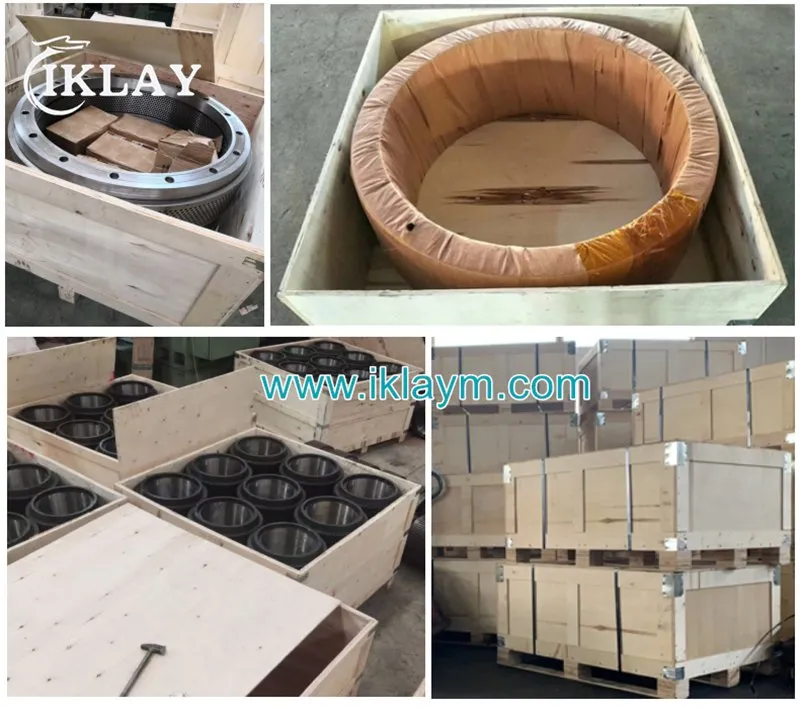

Strict quality control at every stage. Products are packed in reinforced wooden cases to ensure safe international transportation.
