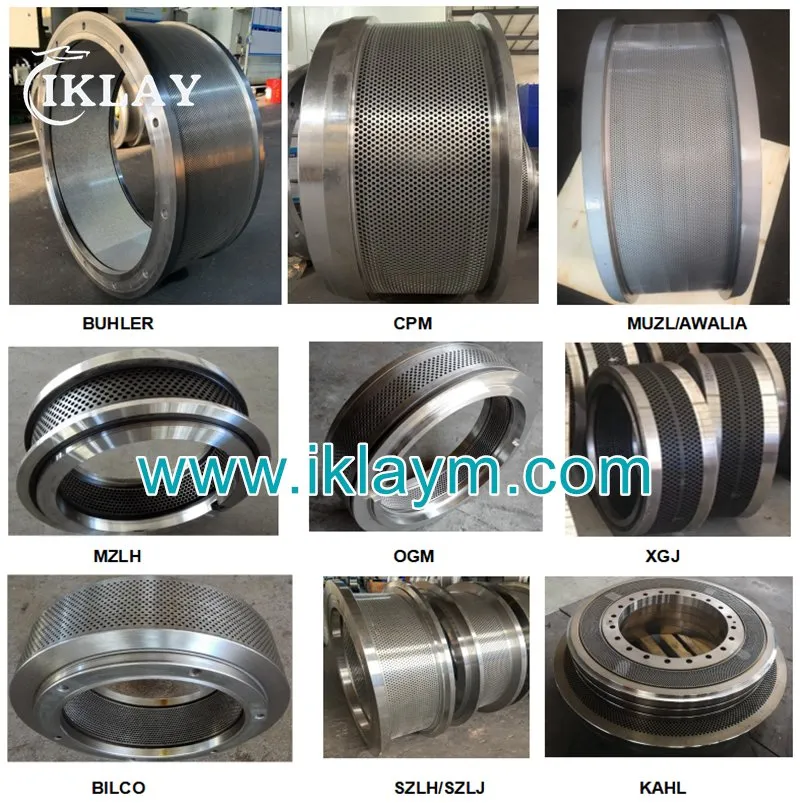

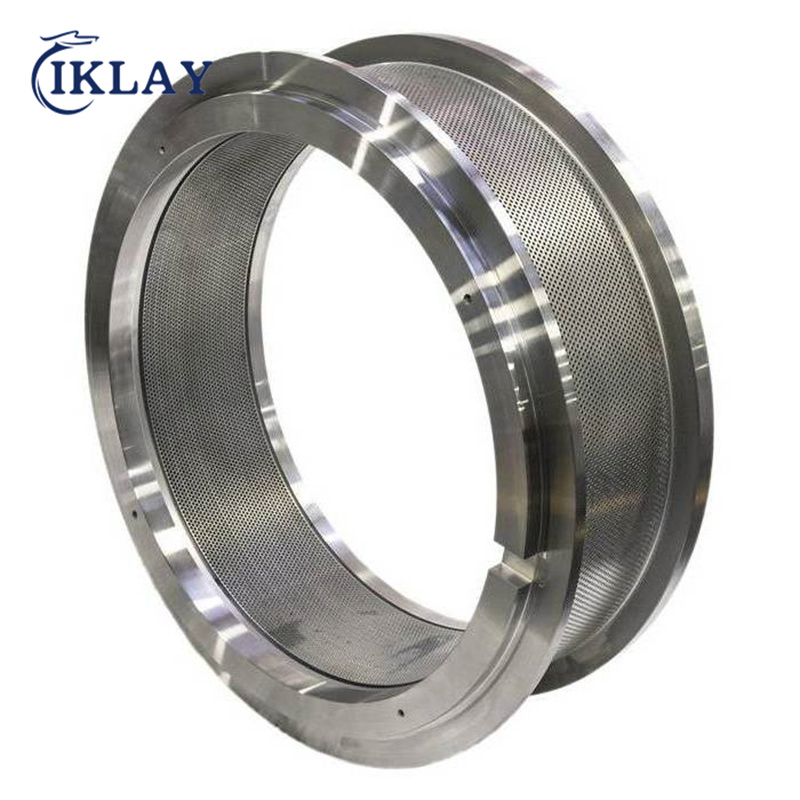

Professional manufacturer for ring dies/ flat dies, pellet mill matrixes, rollers, roller assemblies, spare parts for pellet mill and so on. We can customize various models PELLET DIES & ROLLERS for pellet machine, such as MZLH, SZLH(Zhengchang), SZLJ, HKJ, CPM, OGM, IDAH, Amandus Kahl, MUZL/FAMSUN, Buhler, Van Arson, PTN, Andritz PM, Shenda, Yemmak, CPP, Awila, Yulong XGJ and so on.
| Pellet Mill Brand | Model |
|---|---|
| CPM | 3016-4, 3016-5, 3020-6, 3020SW, 3022-6, 3022SW, 7722-4, 7722-6, 7722-7, 7726-7, 7726SW, 7730-6, 7730-7, 7730-8, 7730SW, 7930-4, 7930-6, 7930-8, 7932-5, 7932-9, 7932-11, 7932-12, 7936-12, 7936-14, 9036-9, 9042-12, 9046-12, 9046-14 |
| Buhler | Buhler 304.58, Buhler 304.78, Buhler 420.108 (DMFJ) (DPCB), Buhler 420.138 (DFPB) (DFPC), Buhler 520.138 (DPBA) (DPUC), Buhler 520.178 (DPBS), Buhler 660.138 (DPAB), Buhler 660.178 (DPAA), Buhler 660.228 (DPAS), Buhler 660.265 (DPHD), Buhler 900.178 (DPGC), Buhler 900.228 (DPGB), Buhler 900.300 (DPHE), SZLH400, SZLH420, SZLH520, AHHB530, AHHC520, AHHD660, AHPE900...... |
| Amandus Kahl | 14-175, 24-390, 33-390, 33-500, 38-600, 35-780, 38-780, 37-850, 39-1000, 40-1000, 45-1250, 60-1250, 60-1500 |
| Zhengchang | SZLH250, SZLH300, SZLH320, SZLH350, SZLH400, SZLH420, SZLH508, SZLH400D, SZLH420D, SZLH420b, SZLH428, SZLH1068, SZLH508E, SZLH1208, SZLH528, SZLH558, SZLH678D, SZLH768D, SZLH858, SZLH660X ...... |
| Fansun(Muyang) | MUZL350, MUZL420, MUZL420TW, MUZL610, MUZL610TW, MUZL1210, MUZL1610, MUZL2010, MUZL600, MUZL1200, MUZL1200A, K15 (SZLH535×190), K20 (SZLH575×205), K25 (SZLH575×210), K30 (SZLH635×220), K35 (SZLH685×245), K40 (SZLH785×270), K60 (SZLH985×340), K70 (SZLH1070×370), MUZL420M, MUZL610M, MUZL1210M, MUZL1610M |
| Yulong | XGJ560, XGJ850, HKJ250, HKJ320, HKJ350, HKJ400, HKJ420, HKJ508 |
| OGM | OGM-1.5, OGM-0.8, OGM-6 |
| PTN | PTN580, PTN580-C...... |
| Yemmak | YEMMAK520, YEMMAK420...... |
Our ring dies/flat dies are suitable for:
| Material | Hardness | Diameter | Outer diameter |
|---|---|---|---|
| X46Cr13/4Cr13(stainless steel); 20MnCr5/20CrMnTi(Alloy Steel) | HRC54-60 | 1.0mm-28mm | <1800mm |

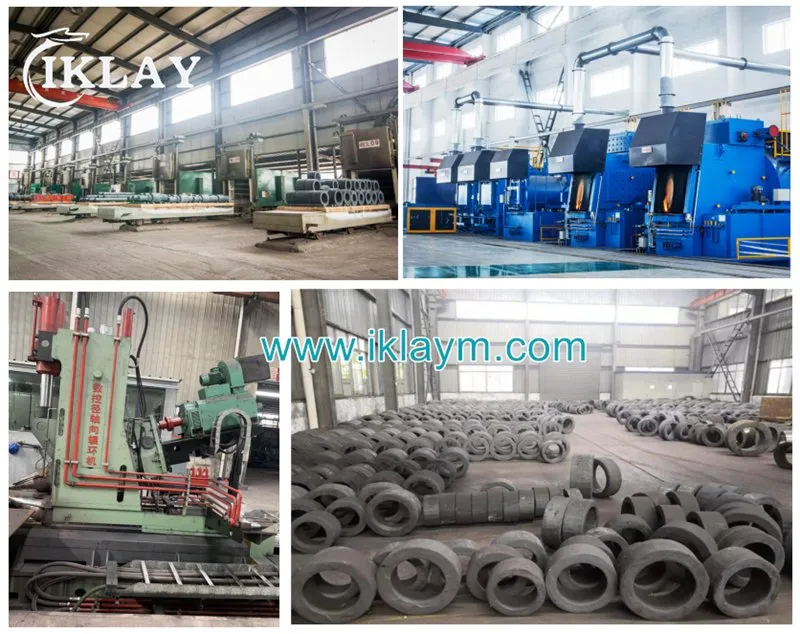

We choose China TOP1 forging factory's raw materials, usage life can be enhanced about 15%. Less impurities and high purity.

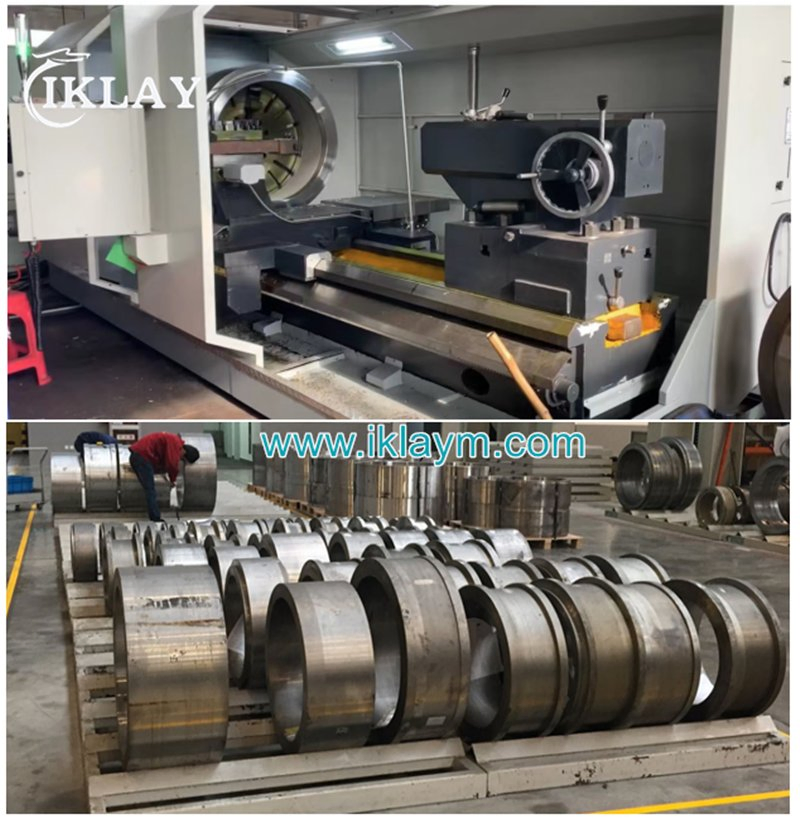

We use automatic CNC lathing machine to lathe ring dies/ flat dies (Rough and Fine Lathing).

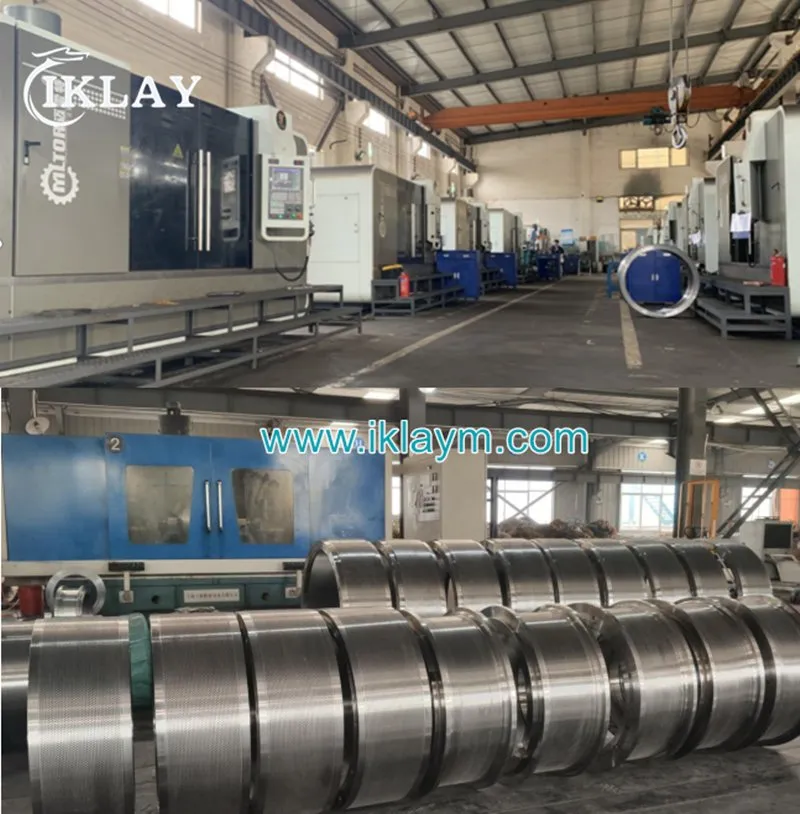

All pellet mill dies are drilled by automatic CNC gun drilling machines to ensure inner holes mirror polishment, high polished and good forming.

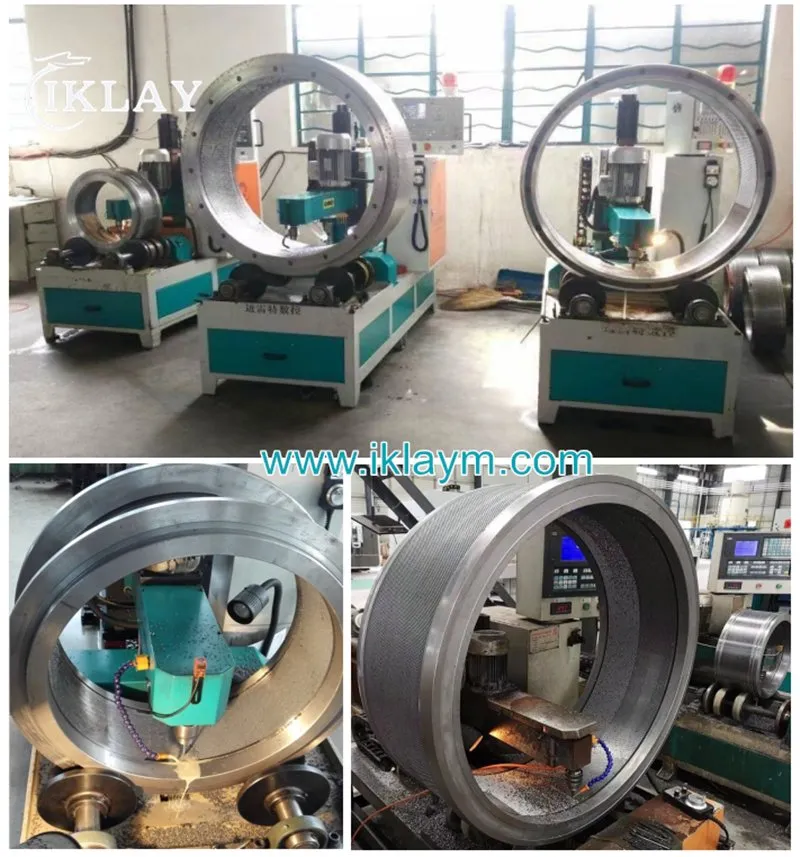

All ring dies are countersinked by automatic CNC countersinking machines to ensure smooth and uniform holes.

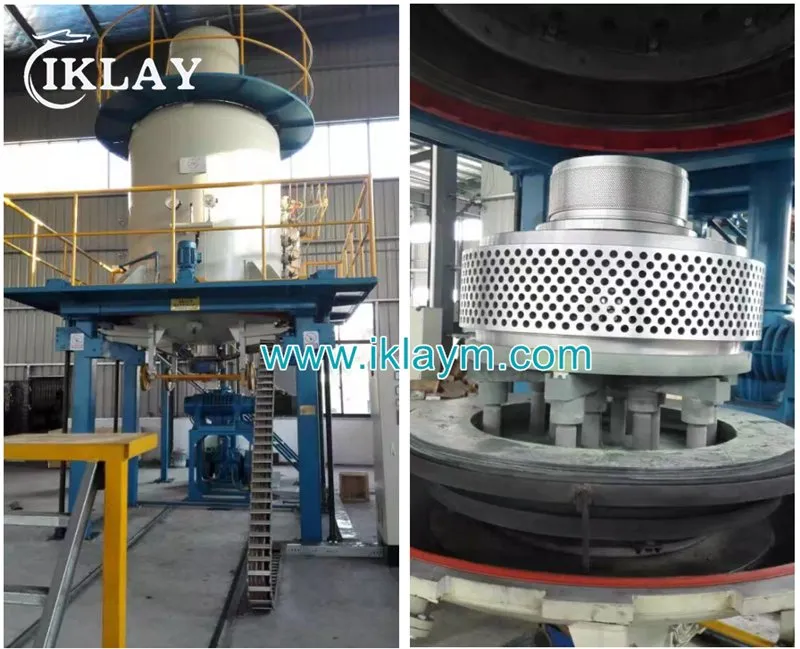

Choosing vacuum furnace processing technology to ensure long service life; Stainless steel ring die can reach HRC 54-58, Alloy steel ring die can reach HRC57-60.

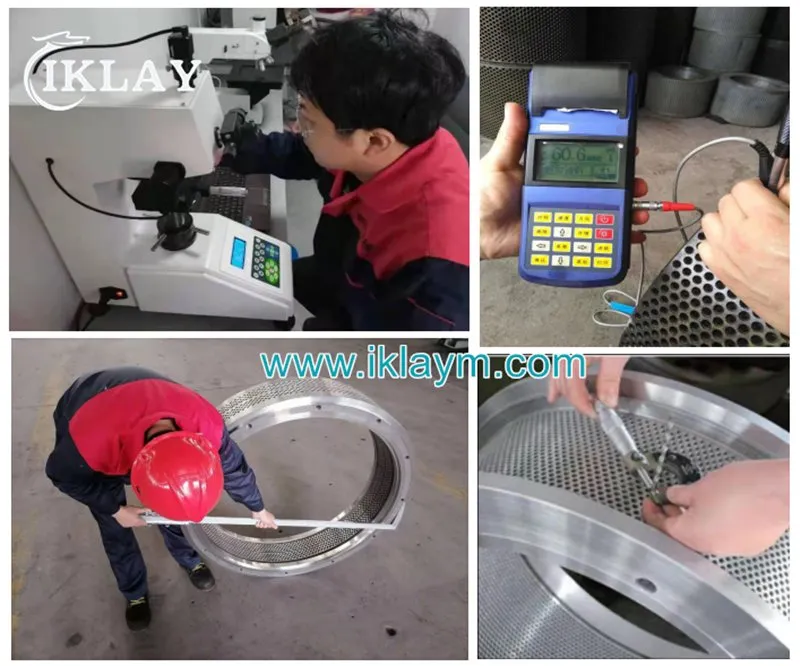

Quality inspectors check each process strictly to guarantee final pellet dies meet high standards.

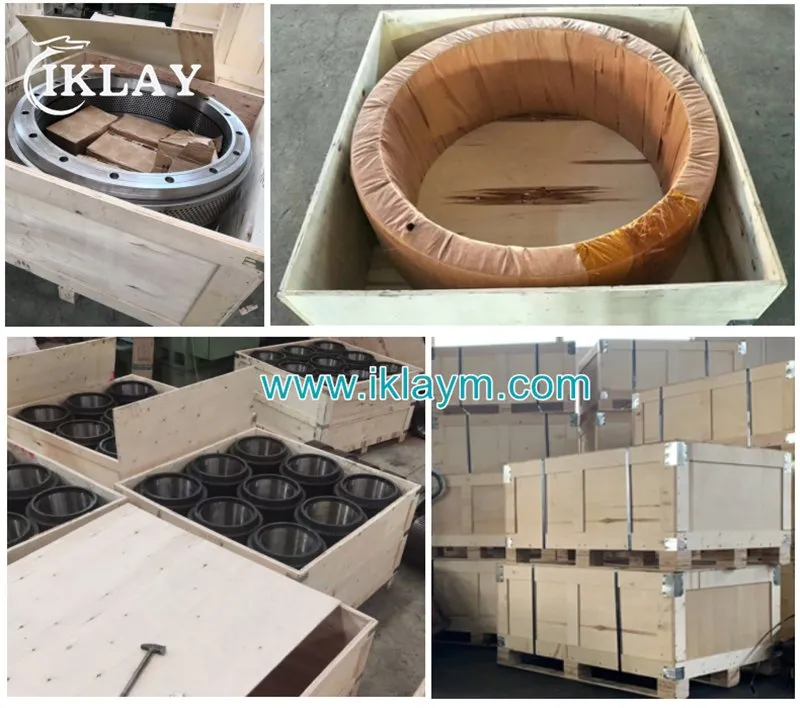

After inspection, we arrange packing with wood boxes to ensure cargoes are in good condition during transportation.
We can customize any model as long as you provide the machine model, hole diameter, compression ratio, materials and size.
