Die Matrix for Pellet Mill B6-Dgv406/ Ring Matrix for Granulator Dgv406
Die Matrix for Pellet Mill B6-Dgv406/ Ring Matrix for Granulator Dgv406
Die Matrix for Pellet Mill B6-Dgv406/ Ring Matrix for Granulator Dgv406
Die Matrix for Pellet Mill B6-Dgv406/ Ring Matrix for Granulator Dgv406
Die Matrix for Pellet Mill B6-Dgv406/ Ring Matrix for Granulator Dgv406
1 / 5
Die Matrix for Pellet Mill B6-Dgv406/ Ring Matrix for Granulator Dgv406
Die Matrix for Pellet Mill B6-Dgv406/ Ring Matrix for Granulator Dgv406
Die Matrix for Pellet Mill B6-Dgv406/ Ring Matrix for Granulator Dgv406
Die Matrix for Pellet Mill B6-Dgv406/ Ring Matrix for Granulator Dgv406
Die Matrix for Pellet Mill B6-Dgv406/ Ring Matrix for Granulator Dgv406

Die Matrix for Pellet Mill B6-Dgv406/ Ring Matrix for Granulator Dgv406

Customization: Available
After-sales Service: Technical Consultant and Guide
Warranty: Spare Parts
Send Inquiry

Product Description

Basic Information

Model NO.
B6-DGV406, B6-DGV500
Application
Pellet Mill Plant
Material
X46cr13, 4Cr13, 20crmnti
Demoulding
Automatic
Surface Treatment
Heat Treatment
Hardness
HRC56-60
Mould Life
>1000 tons
Service Life
About 1500 hours
Origin
China
HS Code
843699

Product Overview

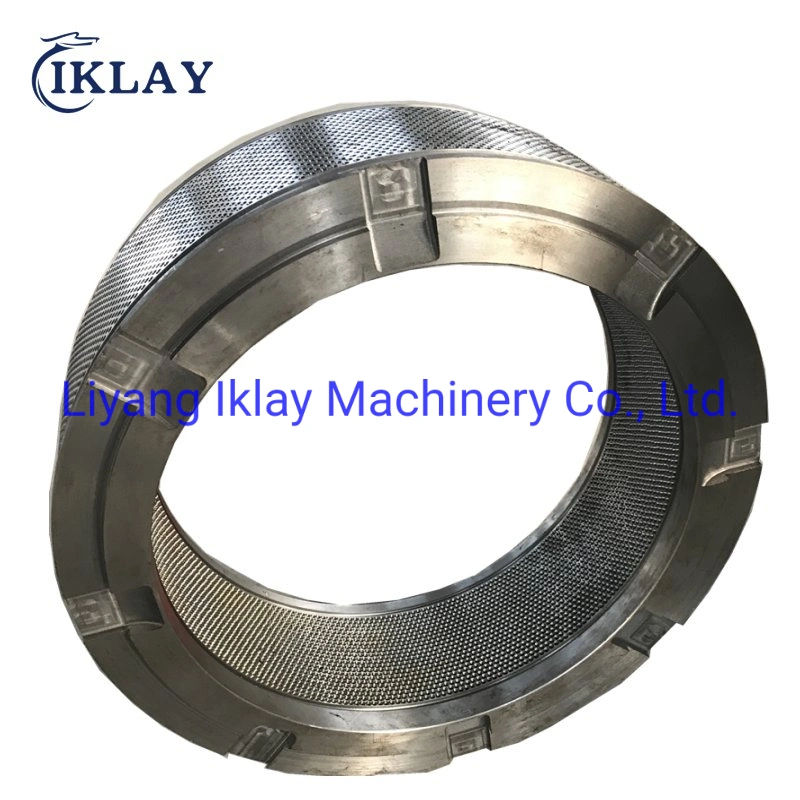

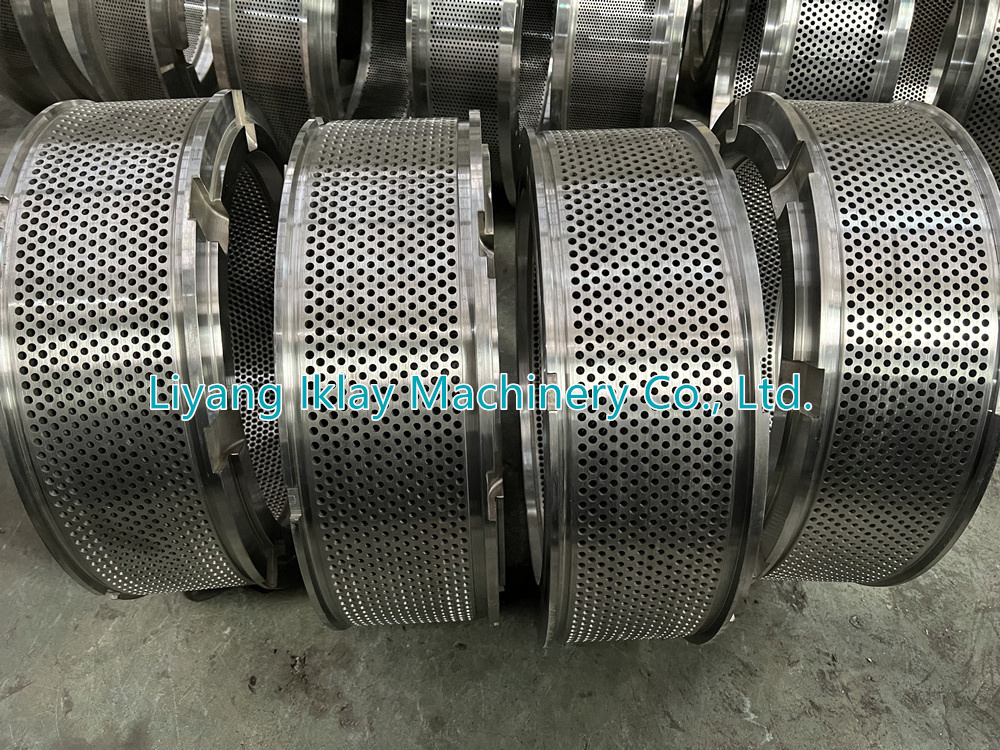

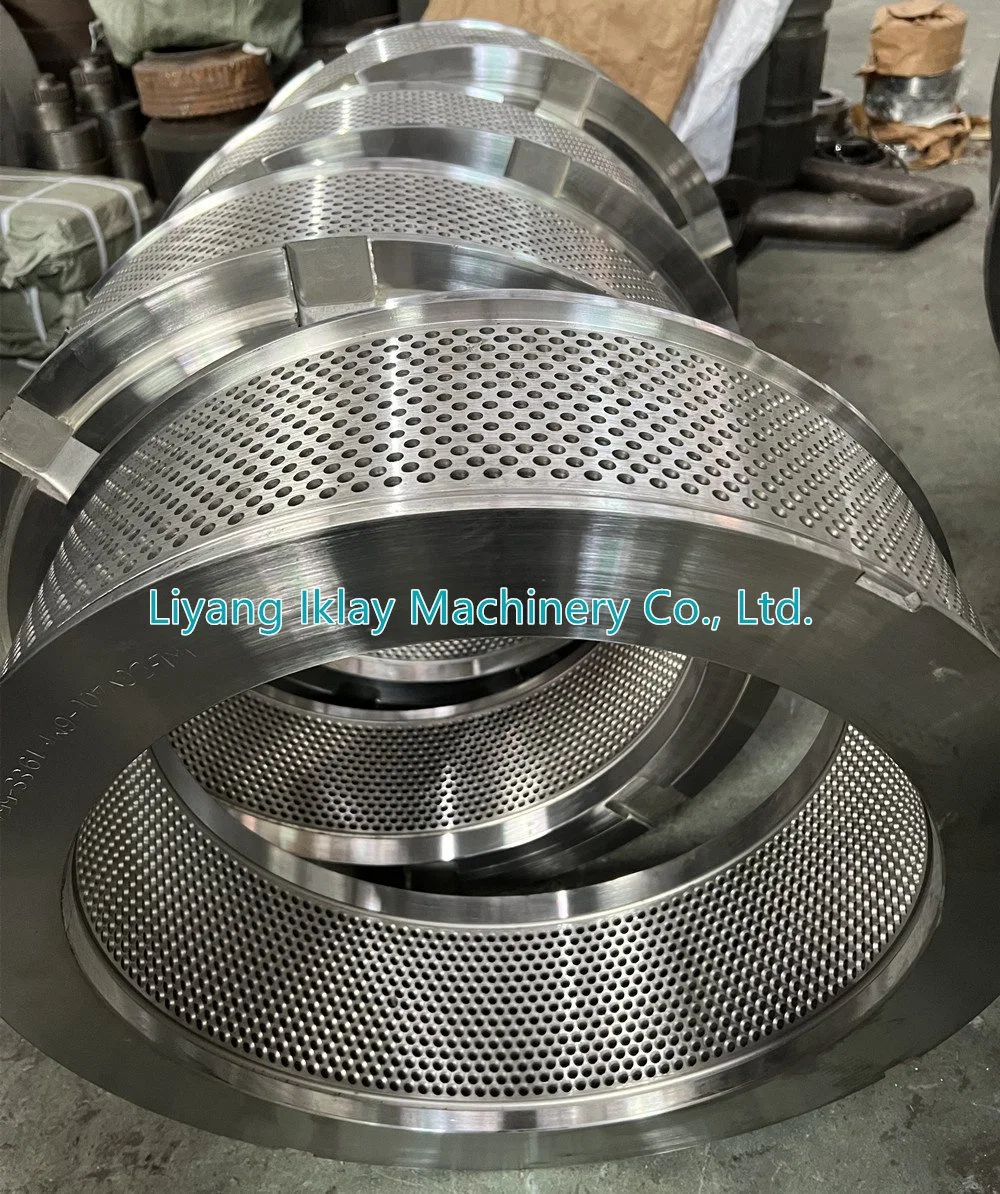

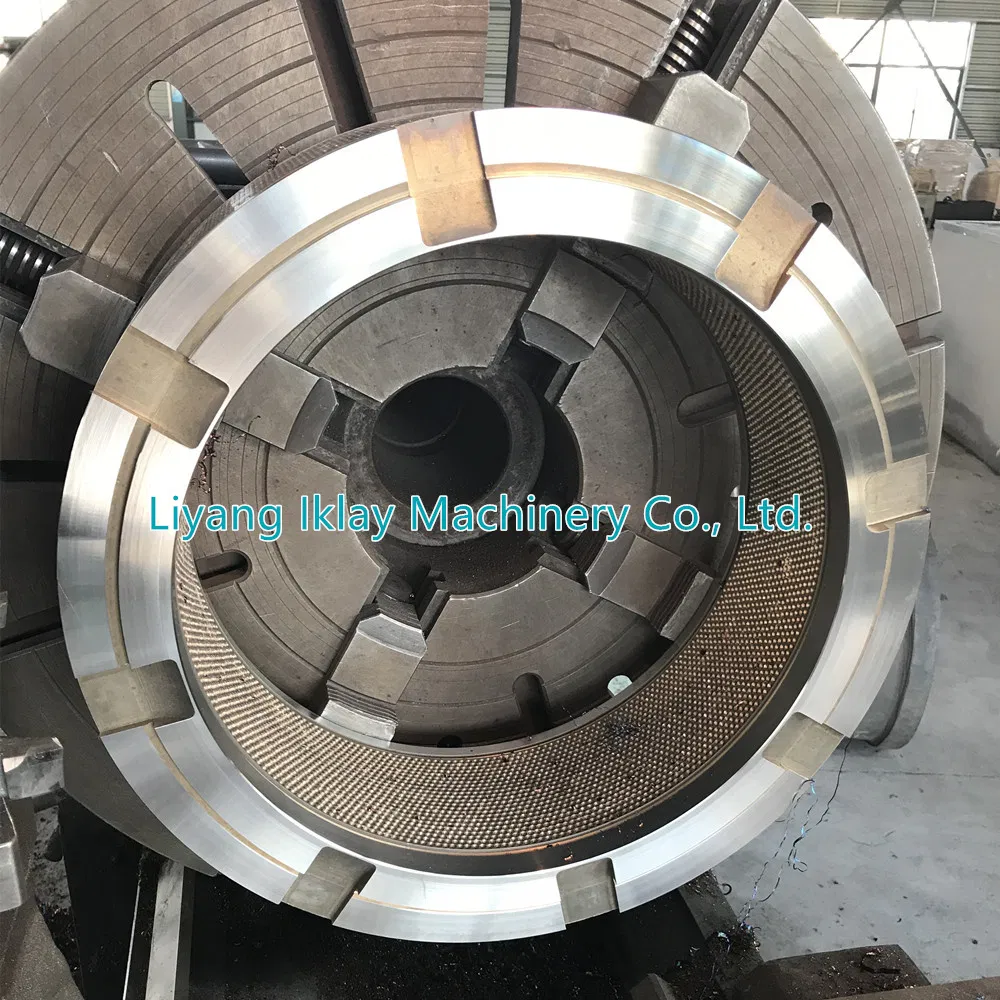

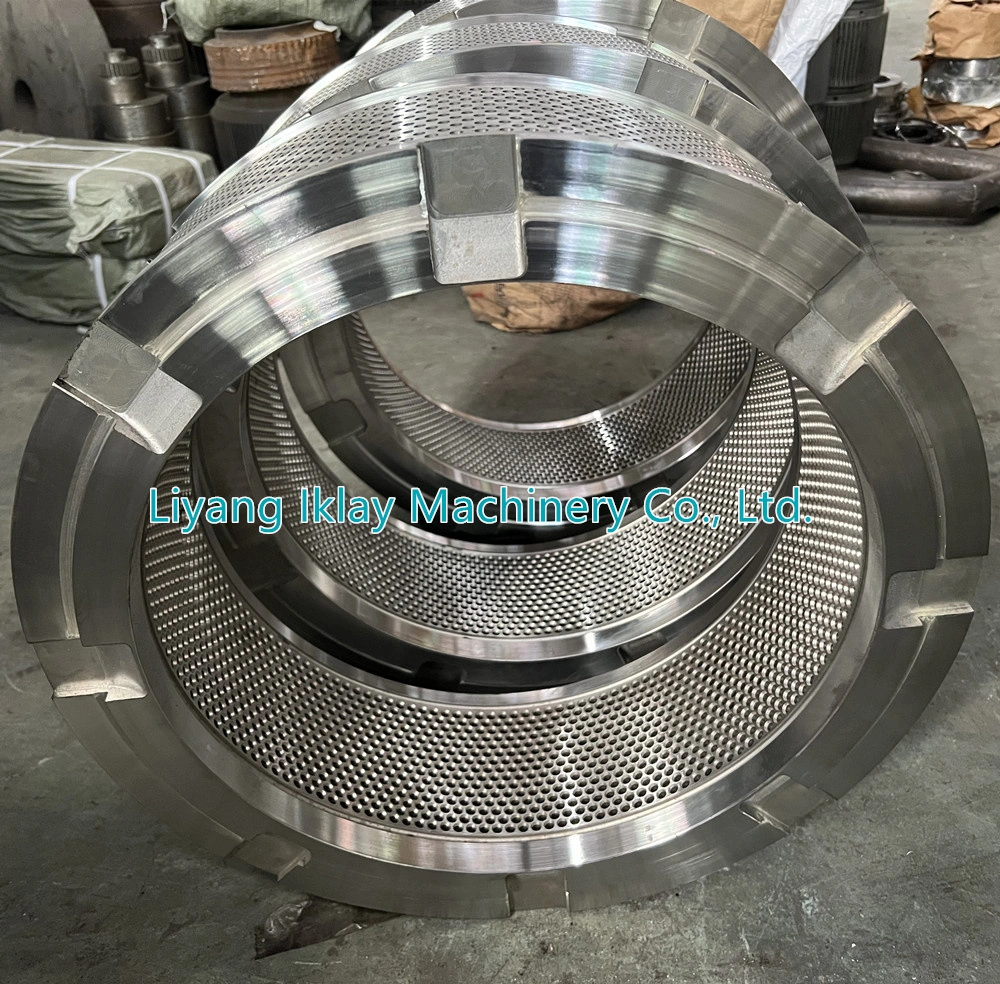

Die matrix for pellet mill B6-DGV406 / Ring matrices for granulators DGV406

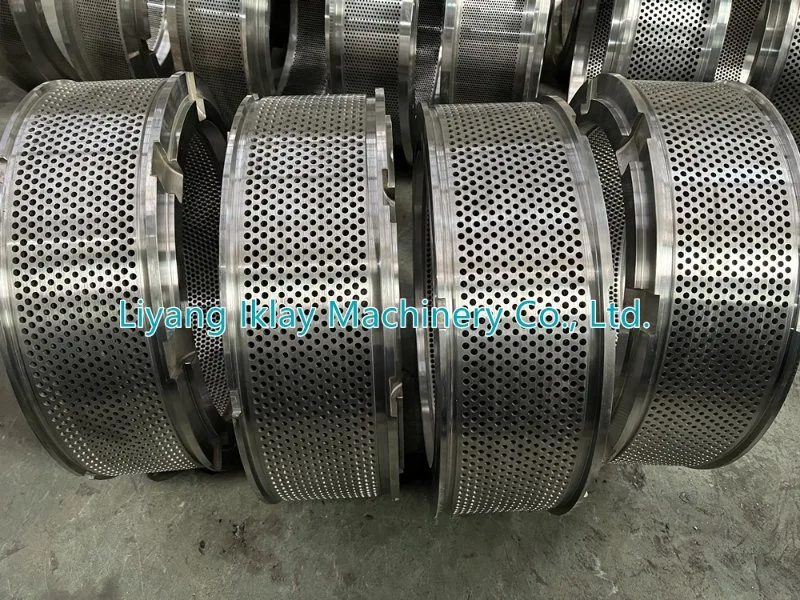

Die Matrix B6-DGV406
Ring Matrix Granulator
We are a professional manufacturer for ring dies, flat dies, pellet mill matrixes, rollers, roller assemblies, and spare parts. We customize various models for pellet machines including MZLH, SZLH, B6-DGV, SZLJ, HKJ, CPM, OGM, IDAH, Amandus Kahl, FAMSUN, Buhler, Van Arson, PTN, Andritz PM, and more.

Technical Parameters

Pellet Mill Brand Model Compatibility
CPM3016-4, 3016-5, 3020-6, 3022SW, 7722-4, 7730SW, 7932-12, 9046-14, etc.
BuhlerSZLH400, SZLH420, SZLH520, AHHB530, AHHC520, AHHD660, AHPE900...
Amandus Kahl14-175, 24-390, 33-500, 38-600, 35-780, 37-850, 45-1250, 60-1500
ZhengchangSZLH250, SZLH350, SZLH420, SZLH508, SZLH1068, SZLH660X ...
Famsun (Muyang)MUZL350, MUZL420, MUZL610, MUZL1210, K20, K30, K40, K60, MUZL1610M
Yulong / OGMXGJ560, XGJ850, HKJ400 / OGM-1.5, OGM-0.8, OGM-6

Material Specifications

Material Hardness Hole Diameter Outer Diameter
X46Cr13/4Cr13 (Stainless Steel); 20MnCr5/20CrMnTi (Alloy Steel) HRC54-60 1.0mm - 28mm < 1800mm

Manufacturing Process

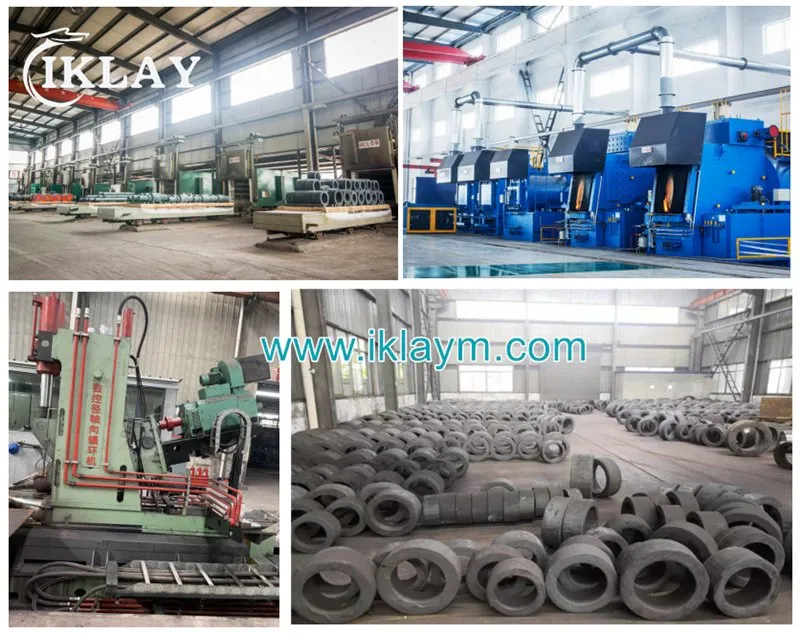

1 Materials Forging & Rolling

Using top-tier raw materials to enhance usage life by approximately 15% with high purity.

Forging Process

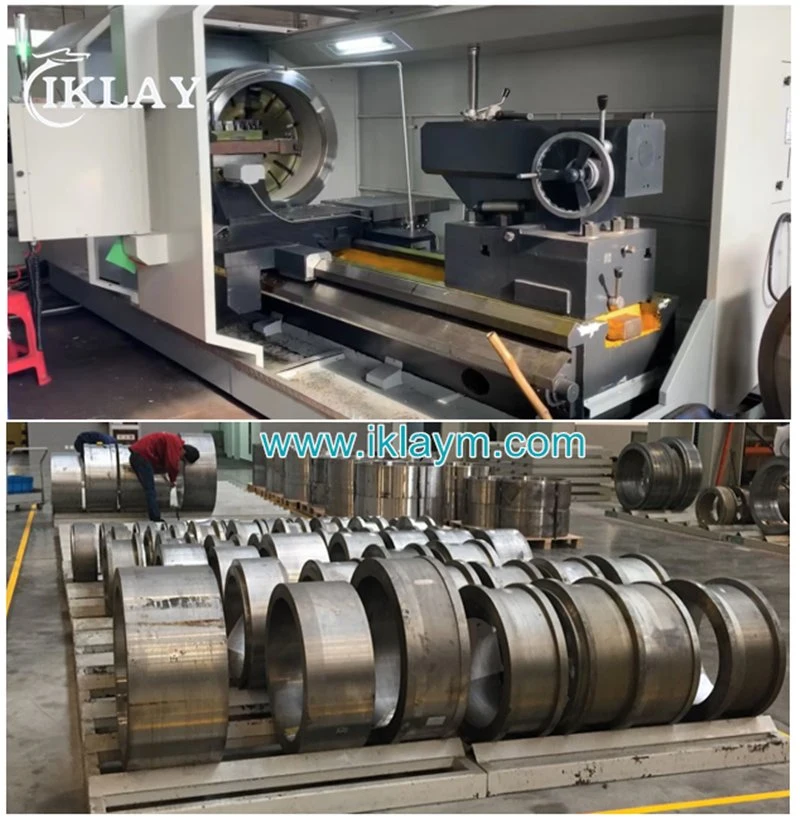

2 CNC Lathing

Automatic CNC lathing machines ensure precise dimensions for ring dies and flat dies.

Lathing Process

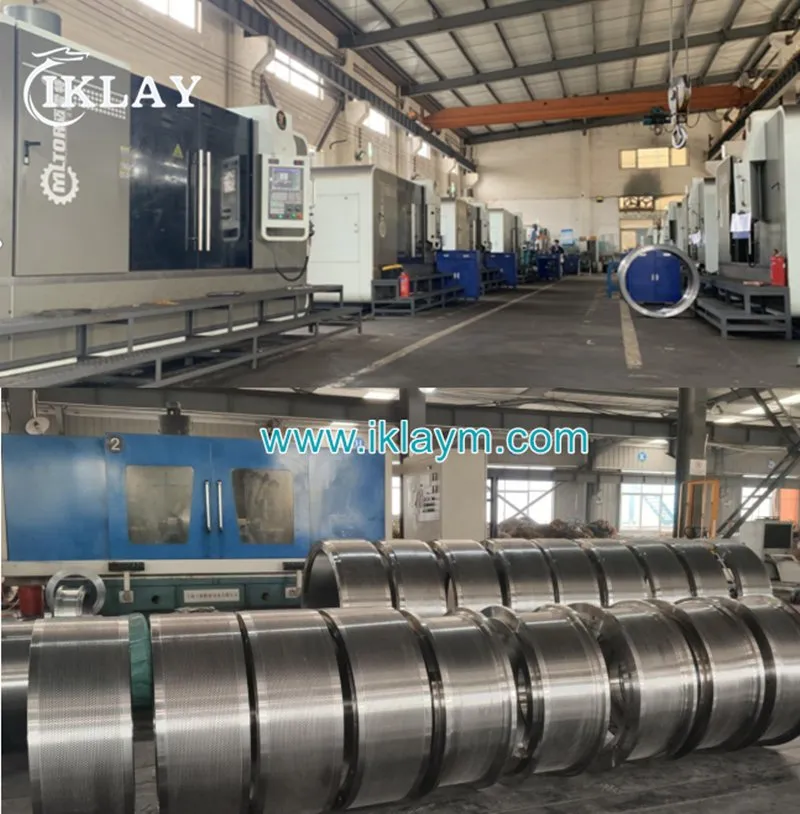

3 Gun Drilling

Drilled by automatic CNC gun drilling machines to ensure inner mirror-polish and smooth discharge.

Drilling Process

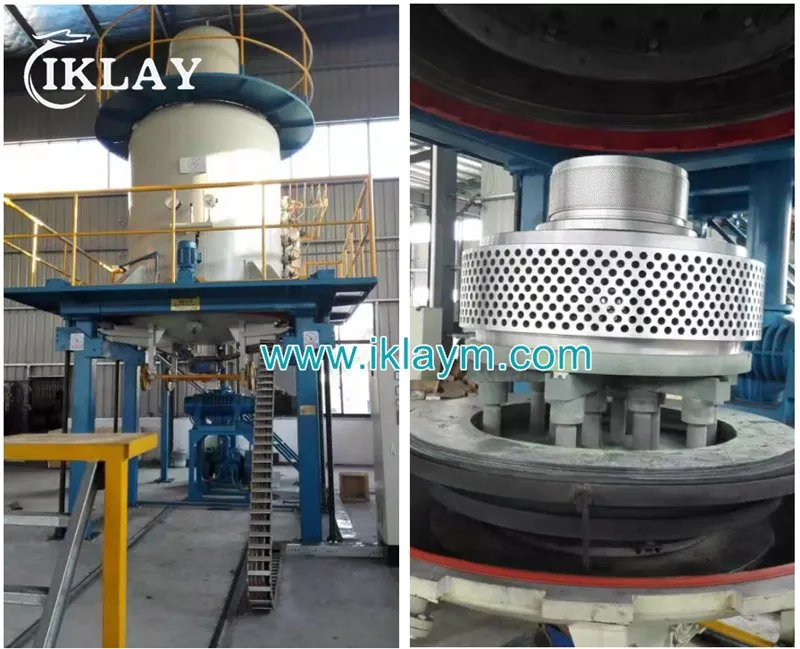

4 Vacuum Heat Treatment

Vacuum furnace technology ensures wear-resistance and corrosion-resistance (HRC 54-60).

Heat Treatment

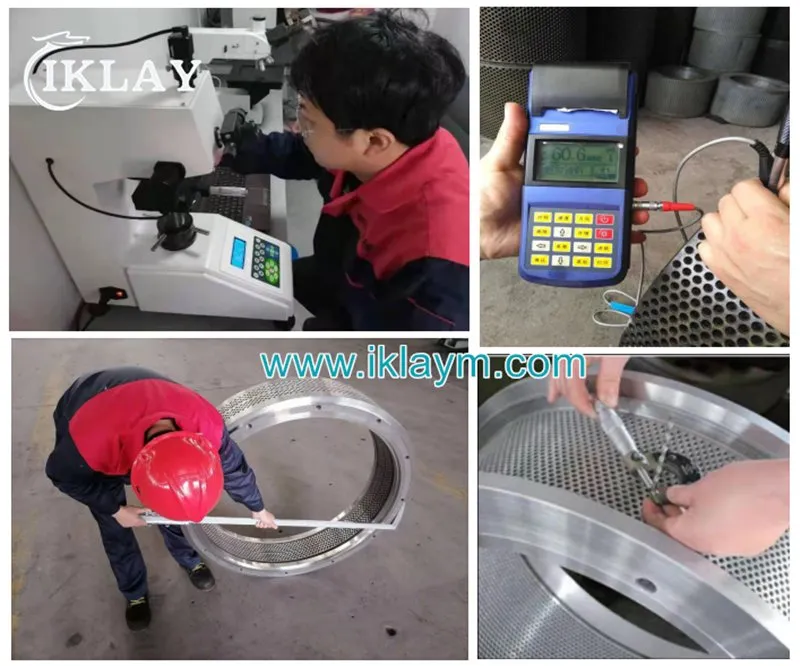

5 Quality Inspection & Packing

Strict quality control at every stage. Products are packed in wooden cases for safe transport.

Inspection Packing

Product Gallery

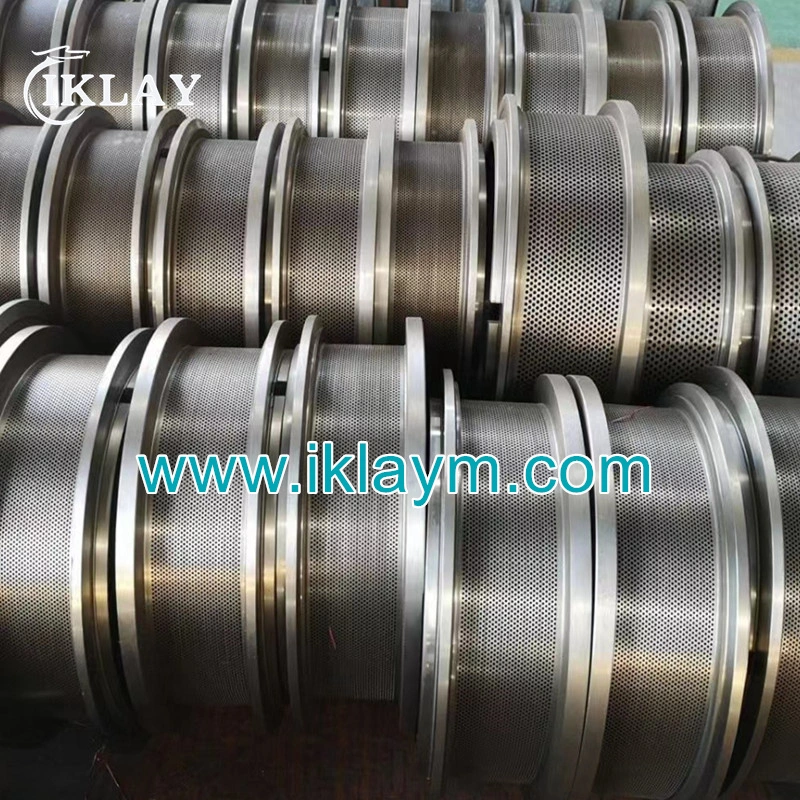

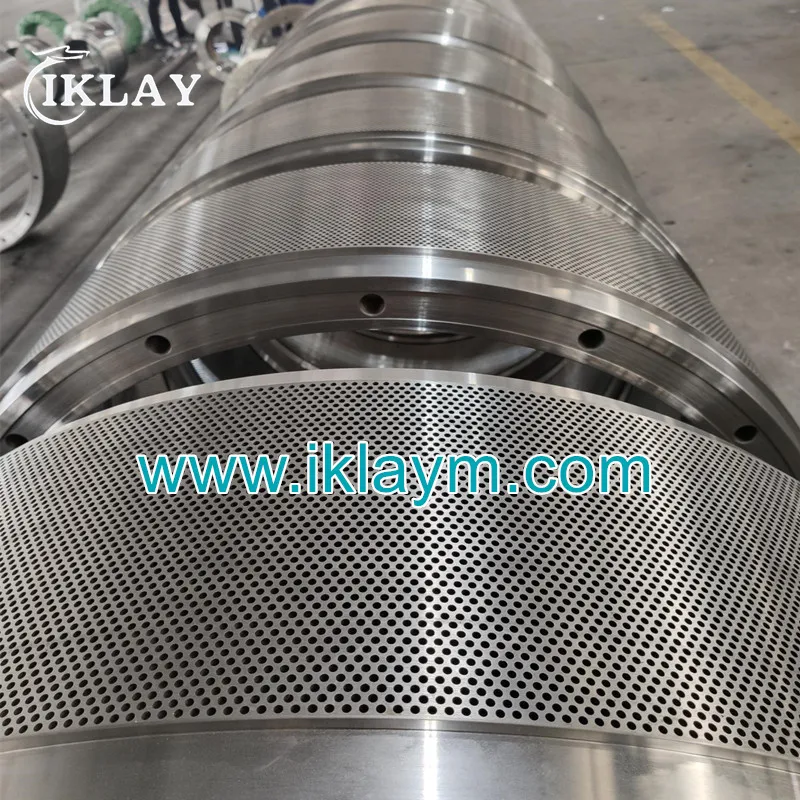

Pellet Die 1 Pellet Die 2
Frequently Asked Questions
What materials are used for your ring dies?
We use high-quality X46Cr13/4Cr13 (Stainless Steel) and 20MnCr5/20CrMnTi (Alloy Steel) sourced from top-tier forging factories.
What is the hardness level of the dies after treatment?
Our stainless steel dies reach HRC 54-58, and alloy steel dies reach HRC 57-60, providing excellent wear and corrosion resistance.
Can you customize dies for specific pellet mill brands?
Yes, we can customize dies for all major brands including CPM, Buhler, Famsun, Zhengchang, Amandus Kahl, and others based on your machine model.
How long is the expected service life of your ring dies?
Typically, our dies have a production life of over 1000 tons or approximately 1500 working hours, depending on the material processed.
What is the range of hole diameters you can produce?
We can manufacture pellet dies with hole diameters ranging from 1.0mm up to 28mm.
How do you ensure the smoothness of the inner holes?
We use automatic CNC gun drilling and countersinking machines which ensure a mirror-polished finish and uniform smoothness for better pellet forming.
